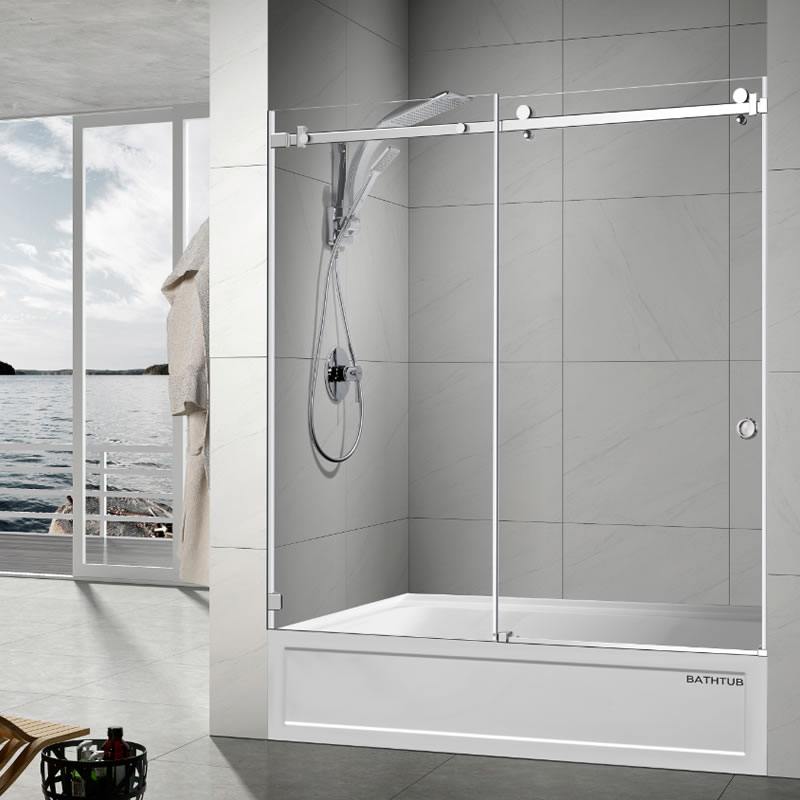

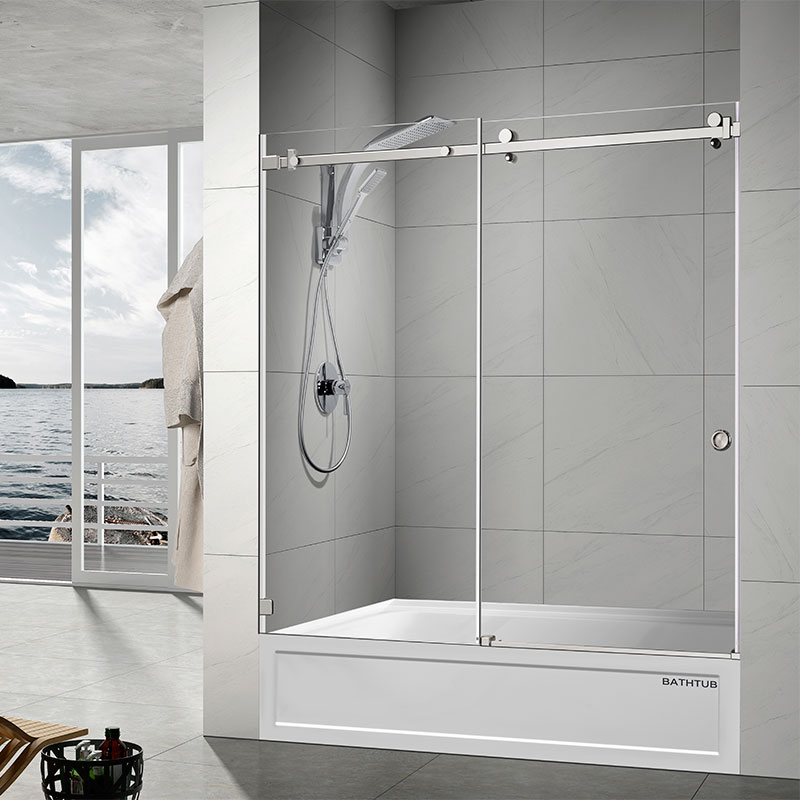

LY9201(BATHUB)

Model Number：LY9201(BATHUB)

Configuration consists of:

Stationary Panel and Sliding Door

Glass：

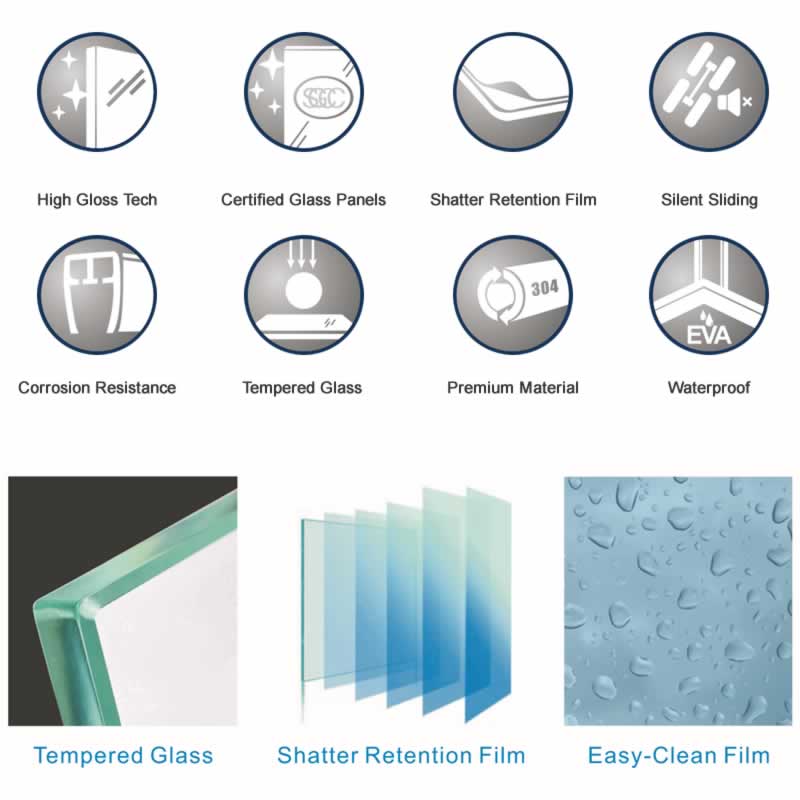

Premium 5/16 in. (8mm) thick certified clear tempered glass

- Waterproof and anti-fouling explosion-proof film

- Fully Frameless design for an open and spacious feeling

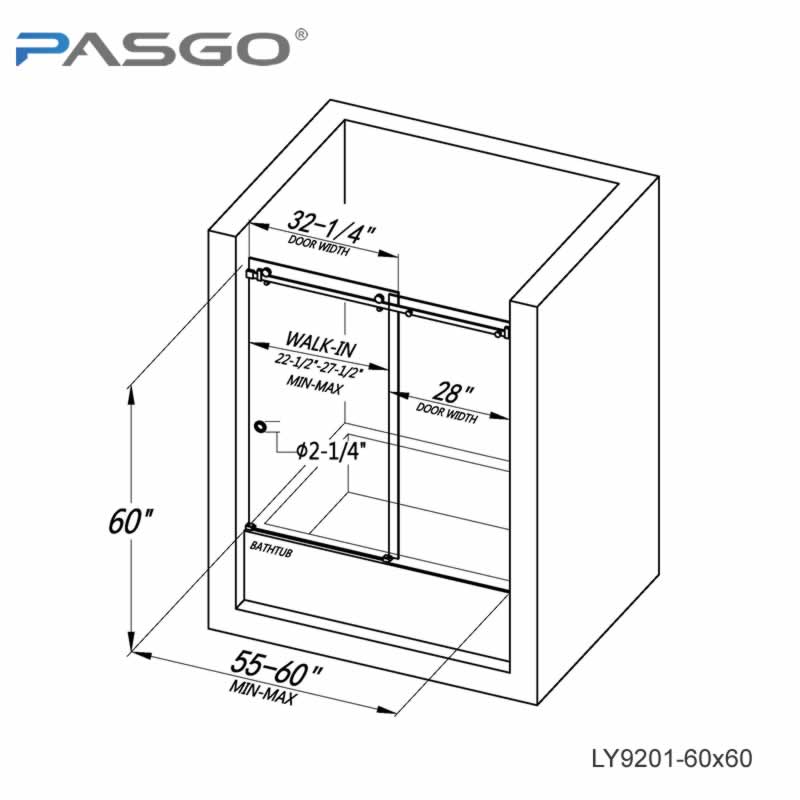

- Stainless Steel Top guide bar can be trimmed up to4 in. for width adjustment, please refer to the Adjustment Calculations

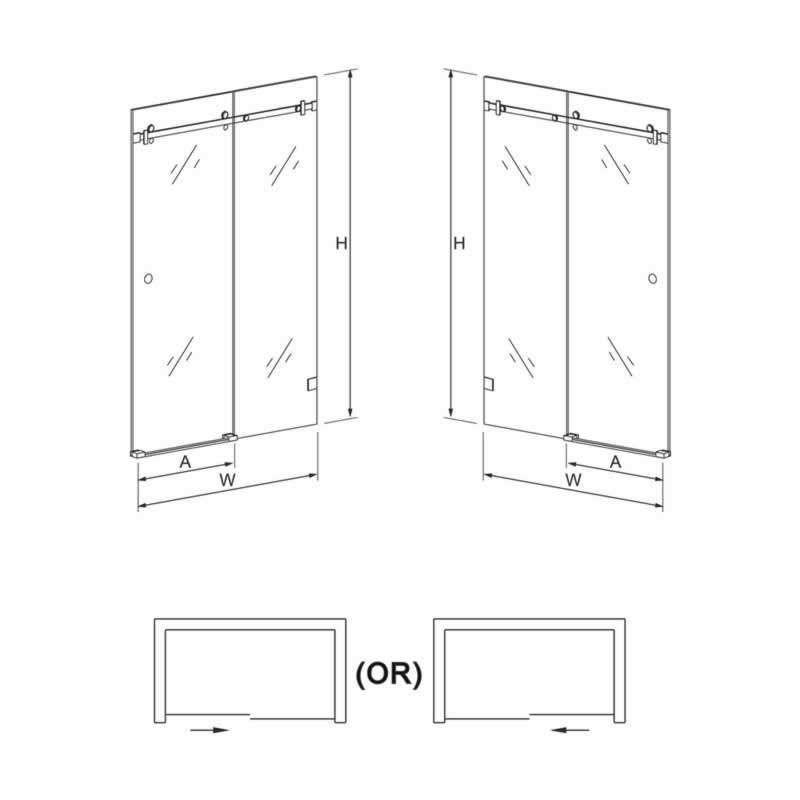

- Reversible for a right or left door opening installation

Hardware Finish:

Polished Chrome

Brushed Nickel

Matte Black

- Anti-splash guard to prevent water spills

- IMPORTANT! All measurements should be taken only AFTER walls are finished (tile, back walls, etc.)

- Professional installation is required

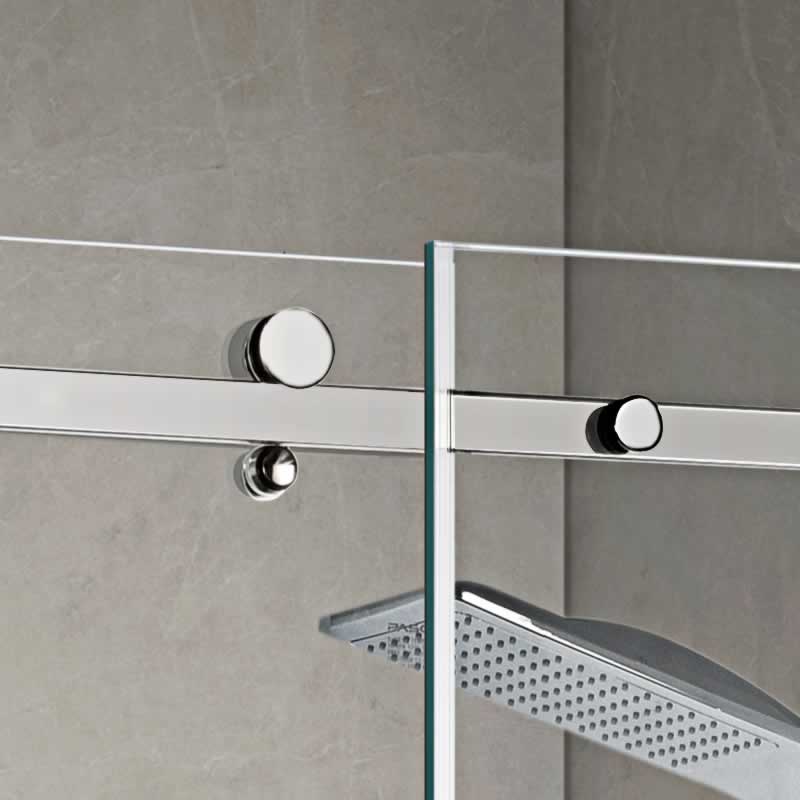

- Specially designed rollers create a smooth, quiet gliding operation

- Large wheel assembly creates effortless sliding action

- ATTENTION! This model has NO adjustment for out-of-plumb (uneven) walls

- Wall profiles accommodate up to 3/8 in. for out-of-plumb (uneven walls)

- PASGO Shower Doors have ten years Limited  Manufacturer Warranty (Brushed Gold and Matte Black finishes limited to 1 (one) year warranty)
